SIEGMUND SYSTEM 28 - STOP AND CLAMPING SQUARE 175ML
The Siegmund System 28 Squares - Stop and Clamping Squares are compatible with any 28mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.
Stop and Clamping Square standard with fine-scale serves as an adjustable angle. The combination of system boreholes and the oblong slot facilitates multi-functional use. The additional top plate provides further combination options in connection with other squares, or to incorporate tools like prisms or clamps. Stop and Clamping Squares can be used for a large variety of tasks, such as a table extension for lightweight components. Due to the oblong slot, it can also function as a stop for high elements.
Technical Data:
|

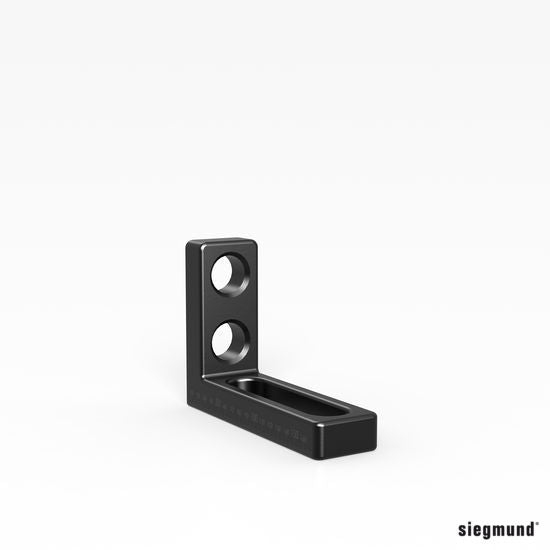

Item No.: 2-280109.1.N
Stop and Clamping Square 175 ML ‐ nitrided
| Length (a) |
175 mm |
| Width (b) |
50 mm |
| Height (c) |
125 mm |
| Material thickness (d) |
25 mm |
| Weight |
1,8 kg |
Product description
Stop and Clamping Square 175 SL / 175 ML, can be used as a stop for large components. In addition, it is compatible with other squares and functions as a height-adjustable support thanks to the elongated hole.
Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ combination of borehole and elongated hole
‐ Standard with fine scaling on both sides
|

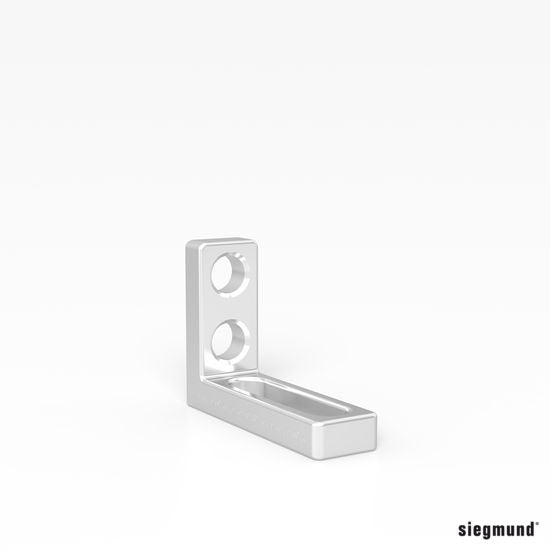

Item No.: 2-280109.1.C
Stop and Clamping Square 175 ML ‐ Chromed
| Length (a) |
175 mm |
| Width (b) |
50 mm |
| Height (c) |
125 mm |
| Material thickness (d) |
25 mm |
| Weight |
1,8 kg |
Product description
Stop and Clamping Square 175 SL / 175 ML, can be used as a stop for large components. In addition, it is compatible with other squares and functions as a height-adjustable support thanks to the elongated hole.
Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ combination of borehole and elongated hole
‐ Delivery time approx. 10 weeks
‐ Standard with fine scaling on both sides
|
